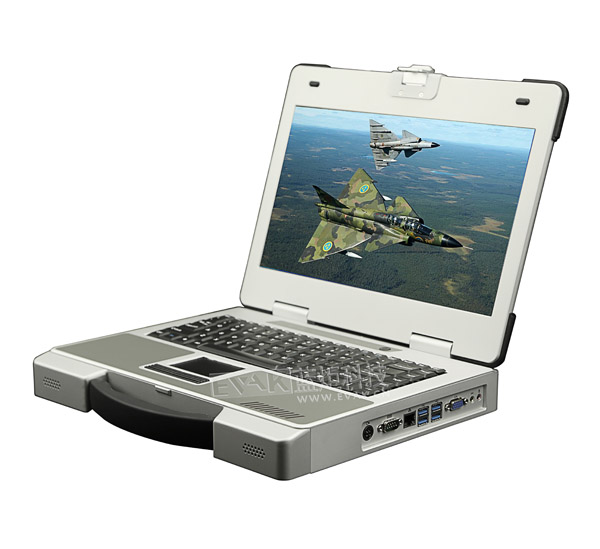

14 inch high performance extensible rugged laptop computer(EPU-5810)

Categories: Rugged laptop computer
Num:EPU-5810
Features:Built-in embedded industrial motherboard, 5200mAh lithium battery, real-time display of electricity under the operating system, can expand a PCI-E X4 card, integrated with all the functions of the notebook: integrated, lightweight. The whole machine adopts aluminum-magnesium alloy reinforced shell.
Service Hotline:+86-13670005178
RODUCT DETAILS


a main boardIndustrial motherboard: +SOCKET CPU single board slot
Expansion slot1 standard half length PCI-E X4 expansion slot (up to 250 x 120mm; support the maximum power PCIE X1:10W; X4:25W)
Host configurationI3-3110M CPU 2.3G (scalable i5, i7)
Memory: 4G DDR3, the largest upgrade to 8G DDR3
Hard disk: 2.5 inch 500GB HDD
displaySize: 14 "TFT LCD
Resolution: 1366 * 768
Brightness: 220cd/ square meters
input deviceKeyboard: 86 key keyboard
Touch panel:
Interface4 USB3.0, 1 serial ports, 1 Gigabit Ethernet (82579LM) interface, audio interface, VGA
lithium batteryThe capacity 5200MAH, standby time 3 hours
Power SupplyInput: DC-19V
Output: 100W
Size: 344mm (length) *280mm (W) *55mm (high)
Weight: 4.5 kg

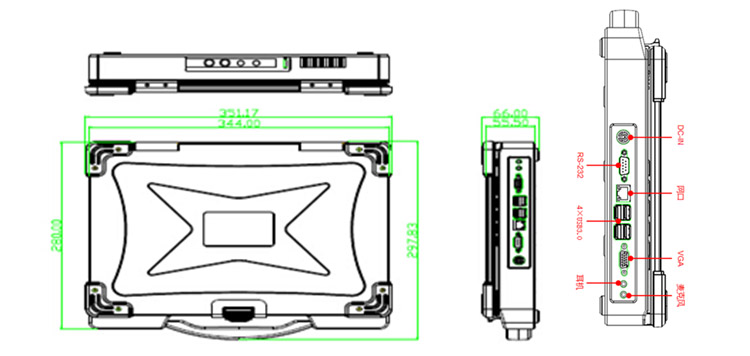

Product sizeRODUCT DIMENSIONAL DRAWING

 Product size

Statement: the product specifications for reference this catalog, all product specifications are subject to change without notice, before ordering please contact BURNRAY Check the specifications of the products of science and technology.
